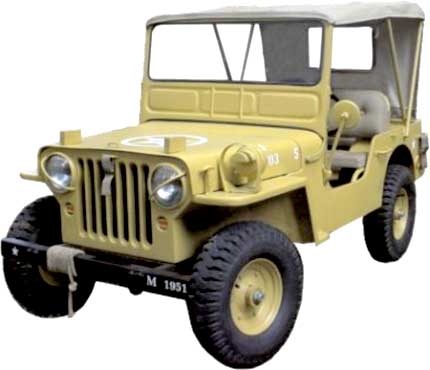

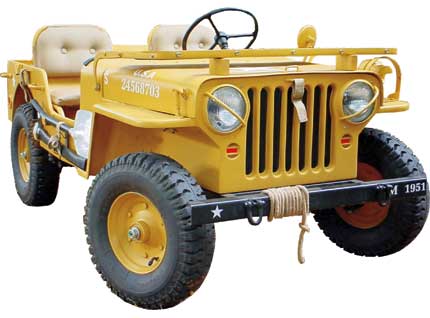

Junior Replicas
also produces a reproduction of this
model using a 2/3 scale.
The Willys M38 appeared in 1948, when
the U.S. Army urgently needed
a 4x4 vehicle of 1/4 ton., but did not
wont to commit the resources
necessary to developed a new model.
The solution was to take an
existing civilian model, produced
by Willys Overland, the CJ3A and
to militarise it with all the necessary
add-ons. This model was then
incorporated into the Army,
under the designation M38, and had a brilliant
performance during the Korea war in 1950.
Jeep and Willys are registered trademark of Daimler-Chrysler Corporation
M38 and MB models,
both exact replicas
of the original
models, are
supplied on the
U.S. Army official
WW II colours:“Olive Drab” and
“Desert Sand”.
Technical specifications
Model: 1951 JUNIOR M38 - 2/3 scaled Body: glass reinforced polyester (GRP) Lenght: 2280 mm Width: 950 mm Wheelbase: 1440 mm Weigth: 120 kg Engine: Motorcycle type, OHC, syngle cylinder, 4 srtoke, air cooled Displacement: 107cc Fuel: petrol Power: 6,9 hp at 7500rpm Starter: electric, battery 12v 7.2ah Transmission: crow, pinion and chain Traction: rear axle Gears: 3, forward, neutral and 1 reverse Clutch: semi-automatic, centrifugal Front suspension: Independent, helicoidal
springs and telescopic shock absorbers Rear suspension: Helicoidal springs and telescopic
shock absorbers Brake: mechanical, disc on rear axle Tires: exclusive, military-design with inner-tube Size: 500 X 8” - air pressure: 15 lbs
